It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.

1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste

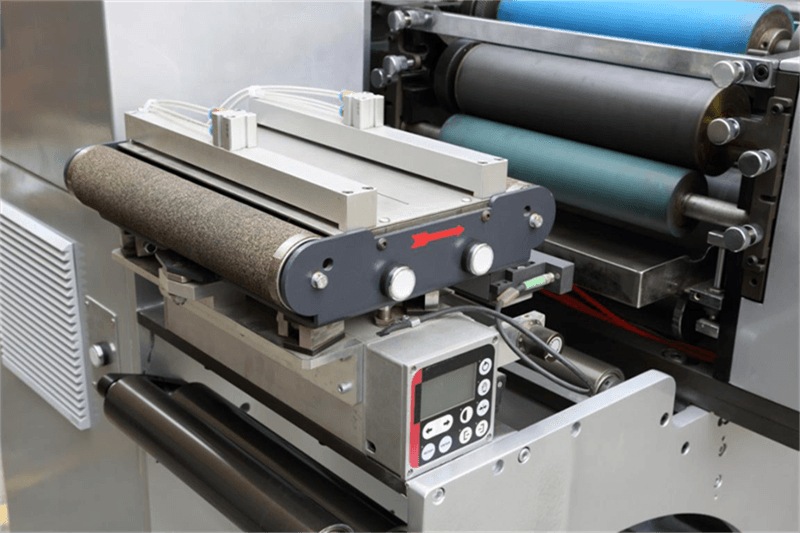

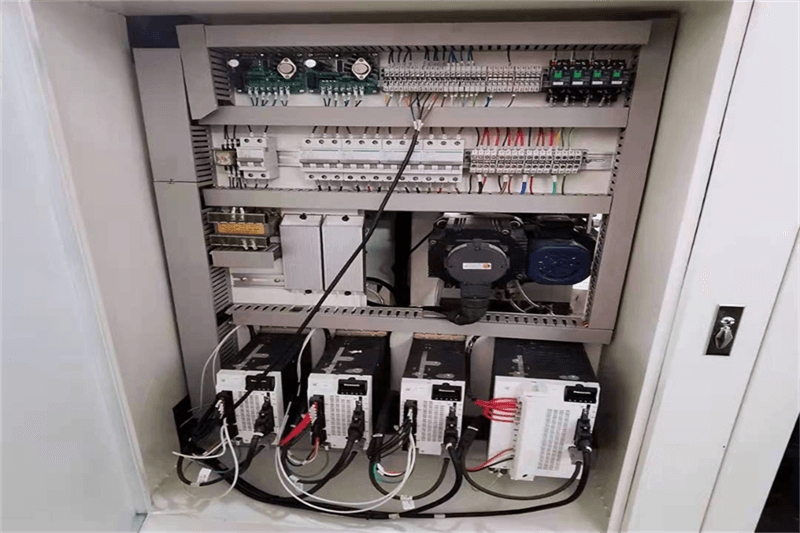

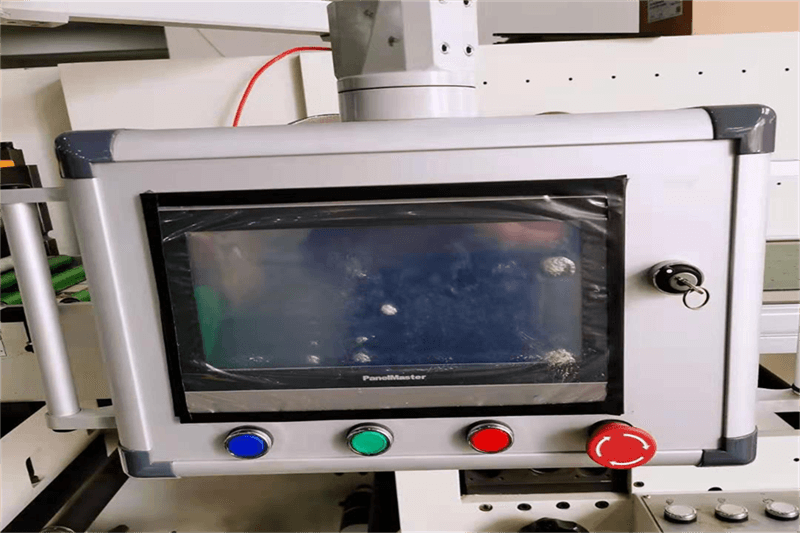

（1） Unwinding adopts cold ring tension control, electronic BST paper guide with ultrasonic edge guide sensor （2） The die-cutting station adopts independent Panasonic servo drive control, which can run in two states of half rotation and rotation. （3） Slitting device with two rewinding shafts （4） Combination function, can add semi-rotary flexo printing unit, realize flexo uv varnish + semi-rotary die cutting + slitting at one time. （5） Independent electric box control, movable touch screen control. （6） The rotary die-cutting machine supports remote control. Any software problems can be solved directly with a laptop computer.

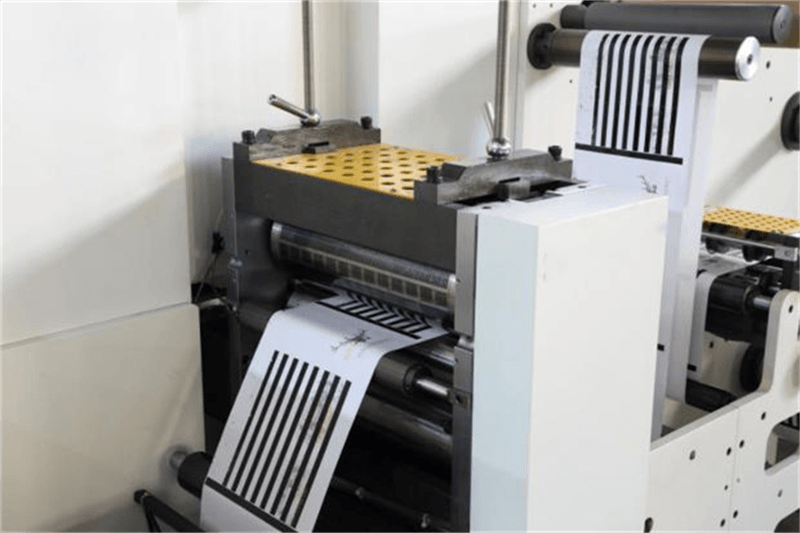

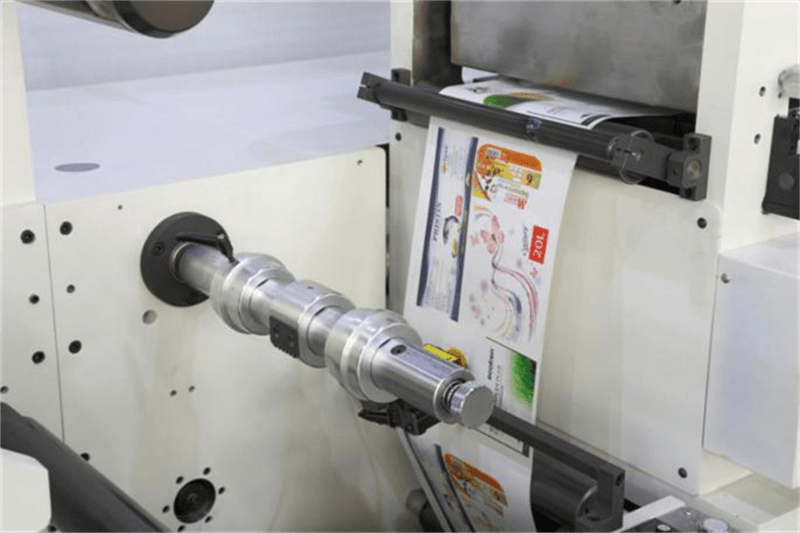

Unwind-Max unwind dia.700mm; Air expanding mandrel 3" Web guide-Maxcess Web guide ( Edge position control ) Flat bed die cutting-Eye mark sensor, height of the blade 9.5mm ( with upper blade and the bottom blade ) Rewind-Single rewind, Max unwind dia.700mm; Air expanding mandrel 3" Waste matrix-Max unwind dia.600mm; Air expanding mandrel 3"
