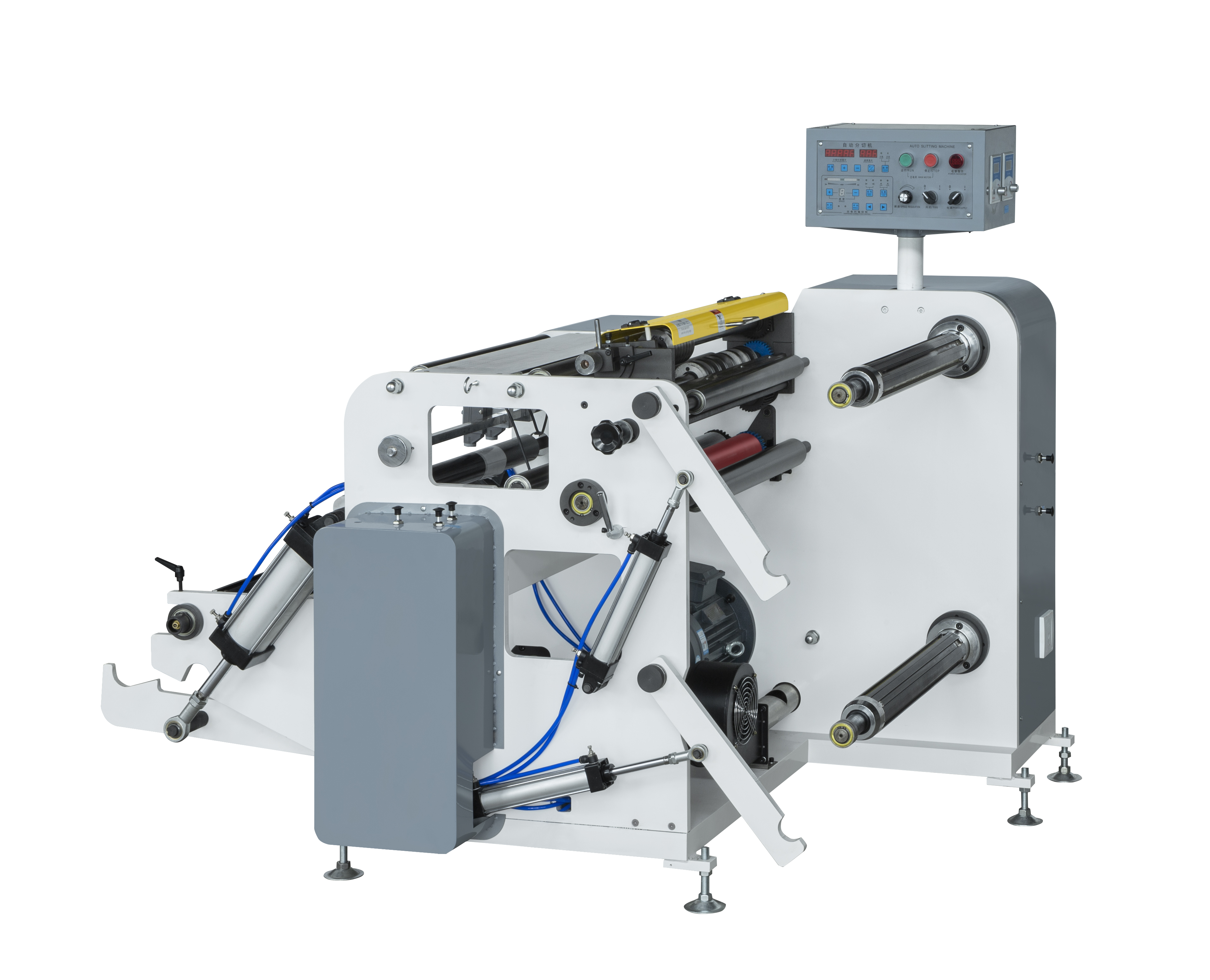

Independently developed patented product, high-speed label slitting machine, large roll feeding system that can automatically feed materials.
Machine features:
Independently developed patented product, high-speed label slitting machine, large roll feeding system that can automatically feed materials. The material receiving system supports the use of various specifications of air expansion shafts. It has high-precision meter measurement and counting functions.
Main Technical Parameter:
Type
Cutting Speed
Max Web Width
Max Unwinding Diameter
Max Rewinding Diameter
The cutting precision
Overall Diameters
Packing Size
Machine Weight
The main motor power
FQ-DC550
120m/min
550mm
1000mm
500mm
±0.15mm
2200*1600*1350mm
2310*1630*1500mm
about 920kg
5kw
FQ-DC620
120m/min
620mm
1000mm
500mm
±0.15mm
2200*1800*1350mm
2310*1630*1500mm
about 920kg
5kw
The FQ-B350 automatic slitter is a complementary product to the automatic die-cutting machine. It is suitable for cutting narrow-width paper and features automatic meter counting, automatic counting, automatic stopping at set length and quantity, and automatic unwind control via photoelectric sensors. The machine has a compact structure, fast speed, high efficiency, accurate slitting, simple operation, and stable running.
Self-developed patented products, narrow-width label high-speed slitting machine, high-end full servo winding and unwinding taper tension system, imported brand process deviation correction system, featuring meter and count functions, speed reduction or stop for less material, and support electrostatic treatment.
Independently developed patented product, high-speed label slitting machine, large roll feeding system that can automatically feed materials.
The FQ-GE350 automatic slitter is a complementary product to the automatic die-cutting machine. It is suitable for cutting narrow-width paper and features automatic meter counting, automatic counting, automatic stopping at set length and quantity, and automatic unwind control via photoelectric sensors. The machine has a compact structure, fast speed, high efficiency, accurate slitting, simple operation, and stable running.
