Performance and features
1. Each unit has an independent servo drive system to ensure stable registration during printing.
2. The printing unit adopts an inking system with 23 ink rollers, 4 large-diameter plate rollers and an alcohol dampening system to ensure printing quality.
3. The pre-registration system records data into the sliding control station according to the printing length, and each unit will automatically adjust to its ready position.
4. Registration system: Each printing unit can remotely adjust registration, including linear, horizontal, and skew, without stopping the machine, saving time and reducing substrate waste.
5. The vacuum return flow control unwinding vacuum return cylinder should be able to prevent the back of the P/S label from being scratched during intermittent movement.
6. Fully automatic operating system without joystick, including pressure adjustment and ink roller cleaning. Roller imprinting, etc.
7. Easy to operate. It is equipped with a sliding touch screen control station that can be moved left and right to improve the operator's work efficiency.
8. The control system uses electronic components to ensure reliable operation.
9. The lubrication system has centralized automatic lubrication.
10. This equipment adopts offset printing machine technology, has reasonable structure, low noise and low energy consumption.
Technical Specification
|
Model |
GW-JX-330 |
GW-JX-520 |
|
Max. web max-width='100%' width |
330mm |
520mm |
|
Max. printing max-width='100%' width |
320mm |
510mm |
|
Printing repeat |
100～350mm |
150～380mm |
|
Thickness of substrate |
0.1～0.3mm |
0.1～0.35mm |
|
Machine speed |
50-180rpm(50M/min) |
50～160rpm |
|
Max. unwind diameter |
700mm |
1000mm |
|
Max. rewind diameter |
700mm |
1000mm |
|
Pneumatic requirement |
7kg/cm2 |
10kg/cm2 |
|
Total capacrty |
30kw/6 colors(Not including UV) |
60kw/6 colors(Not including UV) |
|
UV capacity |
4.8kw/color |
7kw/color |
|
Power |
3 phases 380V |
3 phases 380V |
|
Overall dimension(LxWx H) |
9500 x1700x1600mm |
11880x2110x1600mm |
|
Machine weight |
about 13 ton/6 colors |
about 15 ton/6 colors |

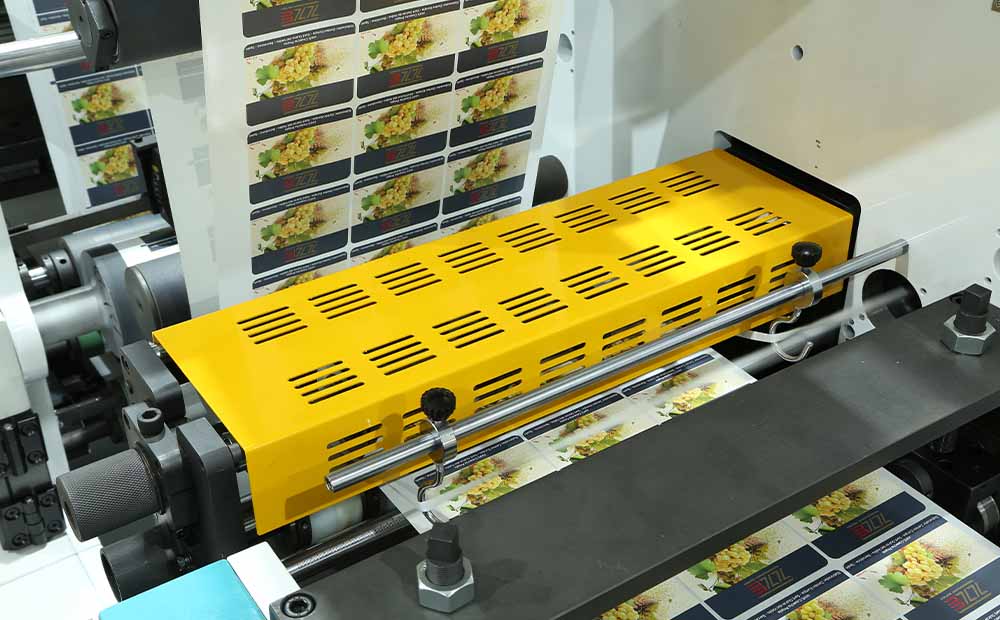

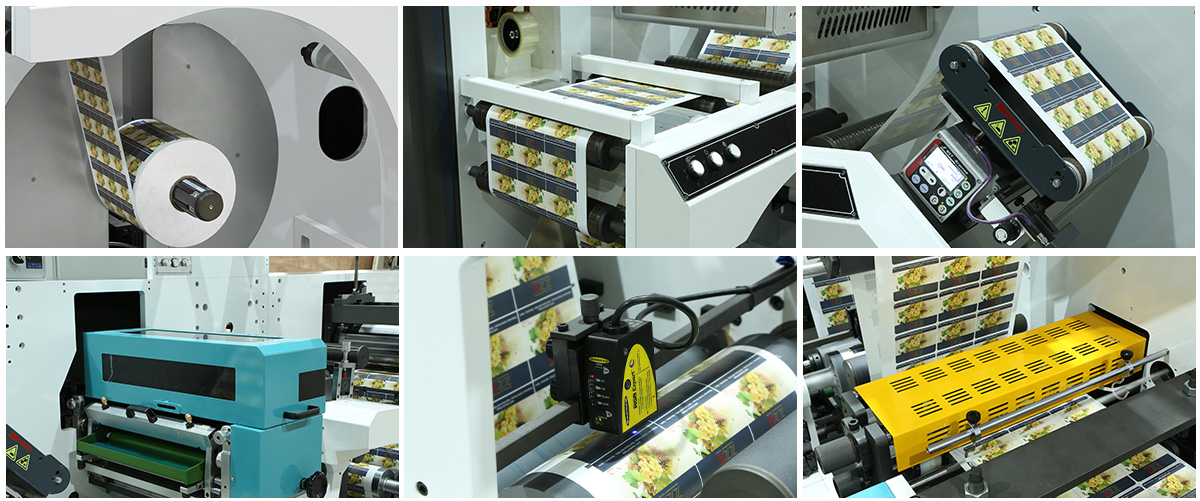

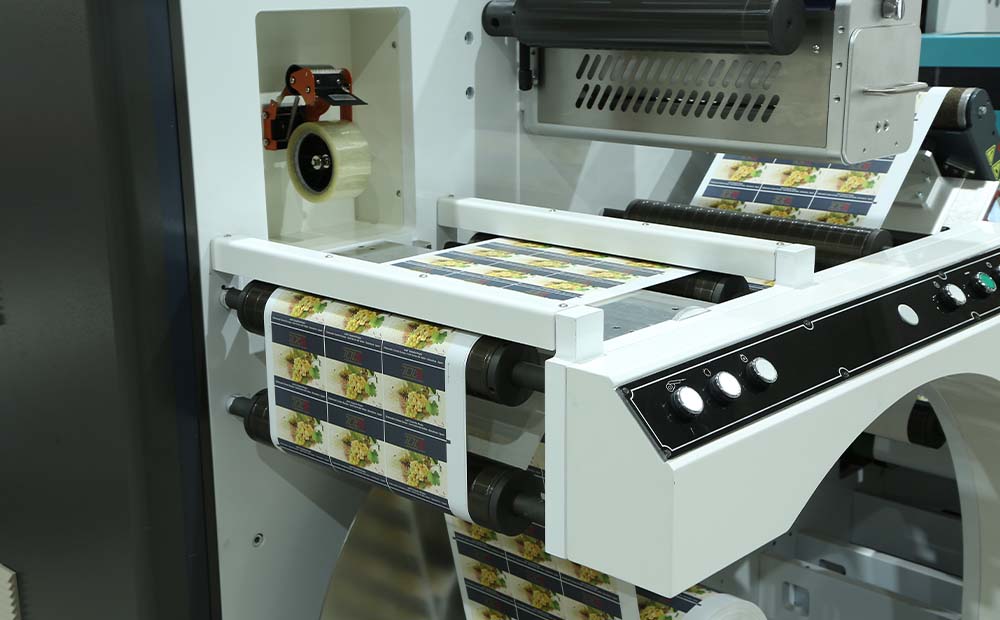

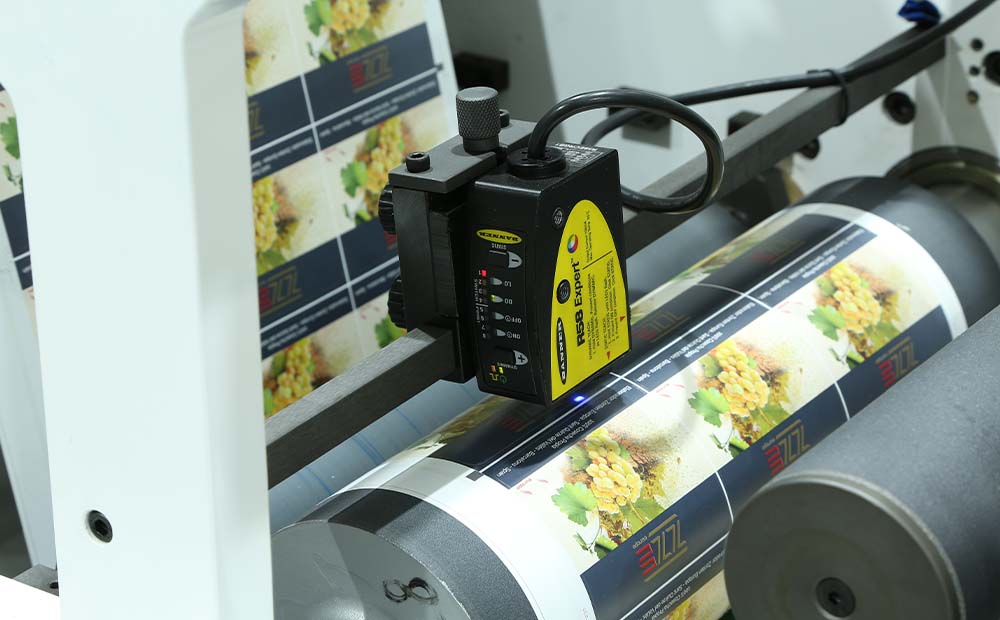

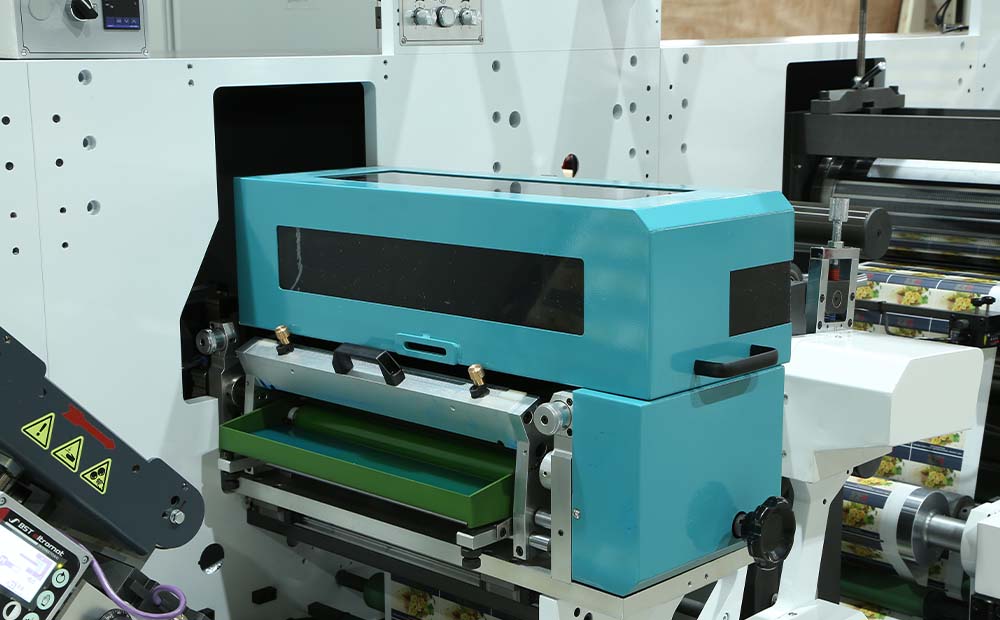

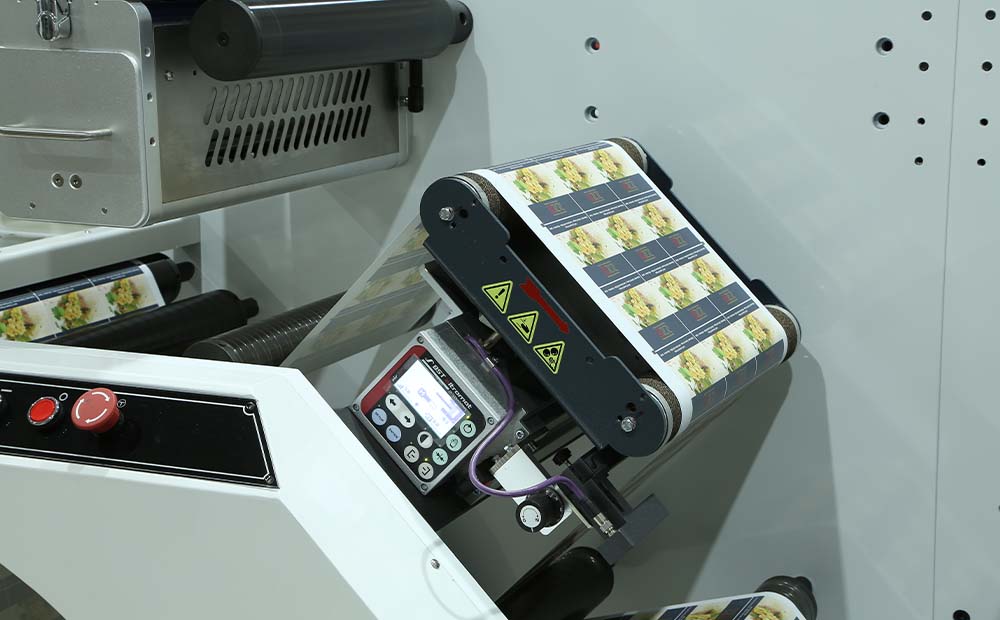

Machine Detail Pictures:
