Feature:

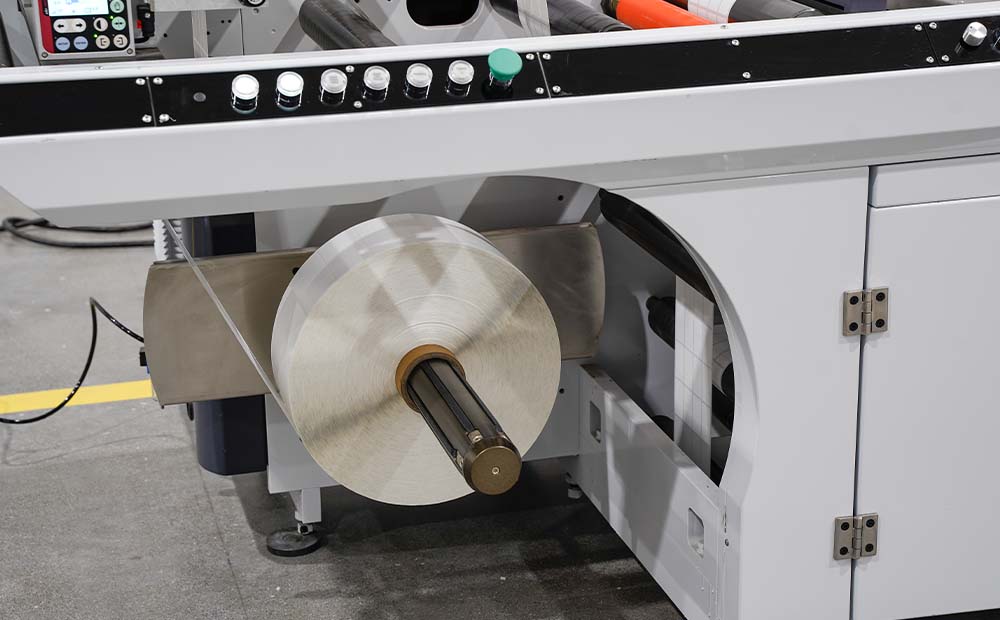

1. Mother reel end photocell with automatic stop.
2. Full rotary flexo printing module support sport varnishing/cold foil
3. Die cut unit able to work full rotary mode and semi rotary mode.
4. Precision cutting to reduce waste
3. Die cut station with servo register control.
4. Internet fault diagnostics .

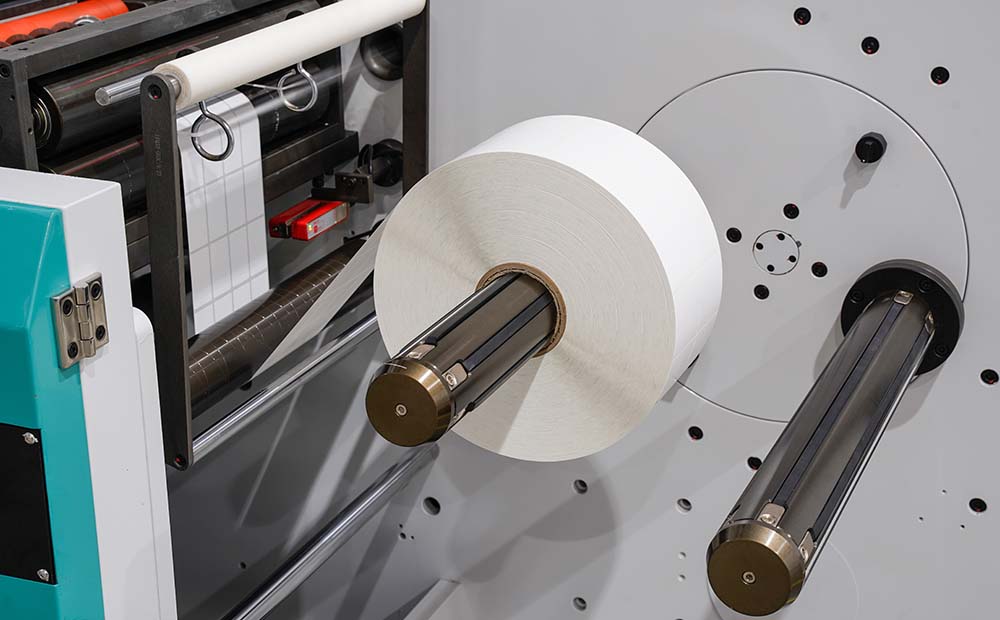

5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )
Feature:
1. Mother reel end photocell with automatic stop.
2. Full rotary flexo printing module support sport varnishing/cold foil
3. Die cut unit able to work full rotary mode and semi rotary mode.
4. Precision cutting to reduce waste

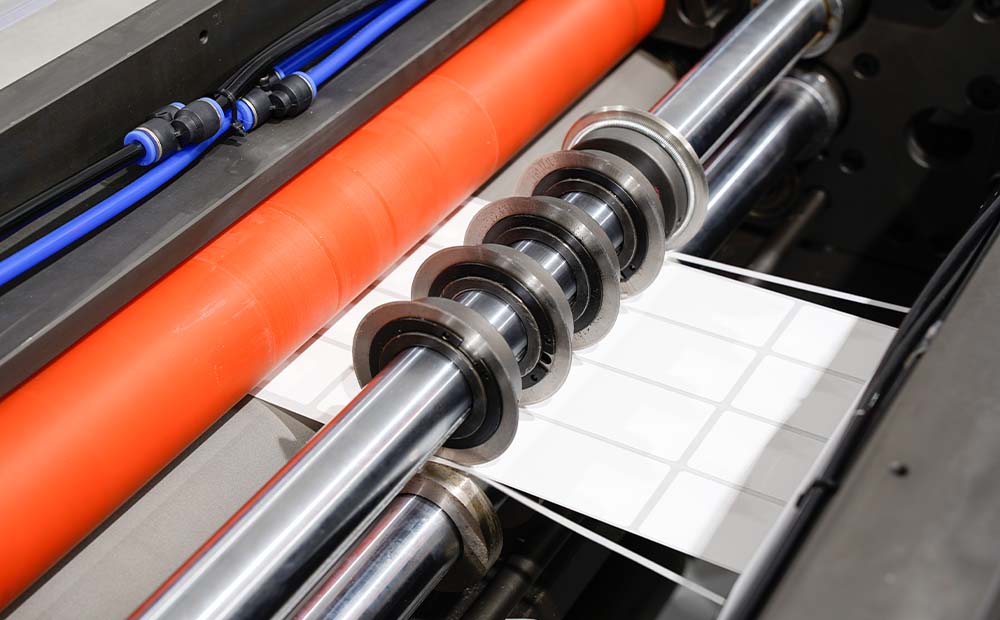

3. Die cut station with servo register control.
4. Internet fault diagnostics .
5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )
Teachnical Specifications:
|
Max Web Width |
450mm |
|
Max Unwinding Dia |
700mm |
|
Max Rewinding Dia |
700mm |
|
Max Speed of Flexo printer |
90m/min |
|
Max Semi Rotary Die Cutting Speed |
60m/min |
|
Max Full Rotary die cutting Speed |
90m/min |
|
Accuracy of Adhesive Cutting |
±0.15mm |
|
Power |
3 PH+N+PE |
|
Air supply |
0.4~0.6MPa |
|
Overall Diameter（L×W×H） |
3600mm×1370mm×1925mm |
|
Weight |
3800KG |

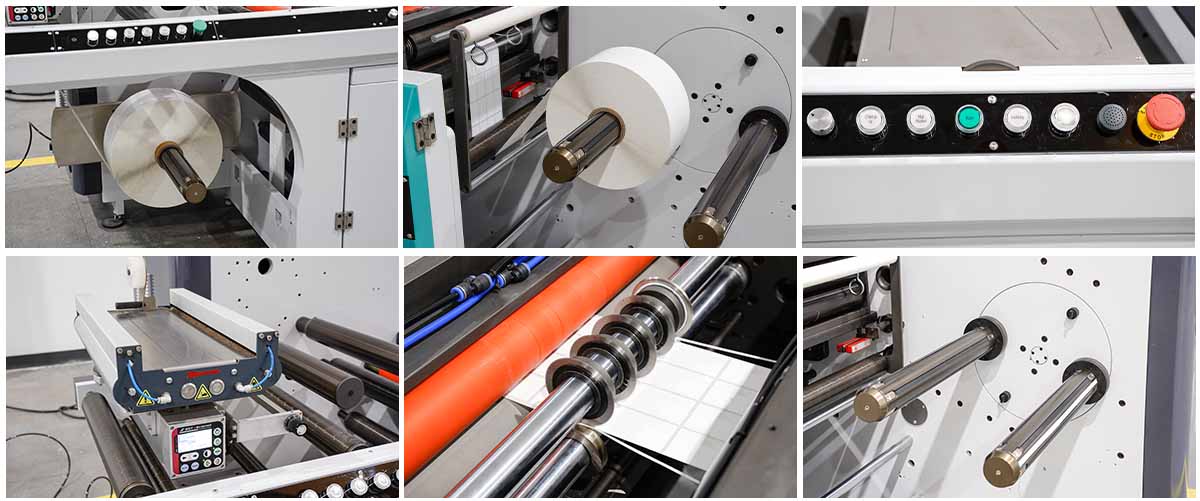

Machine Detail Pictures：
1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste 3. Die cut station with servo register control. 4. Internet fault diagnostics . 5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )

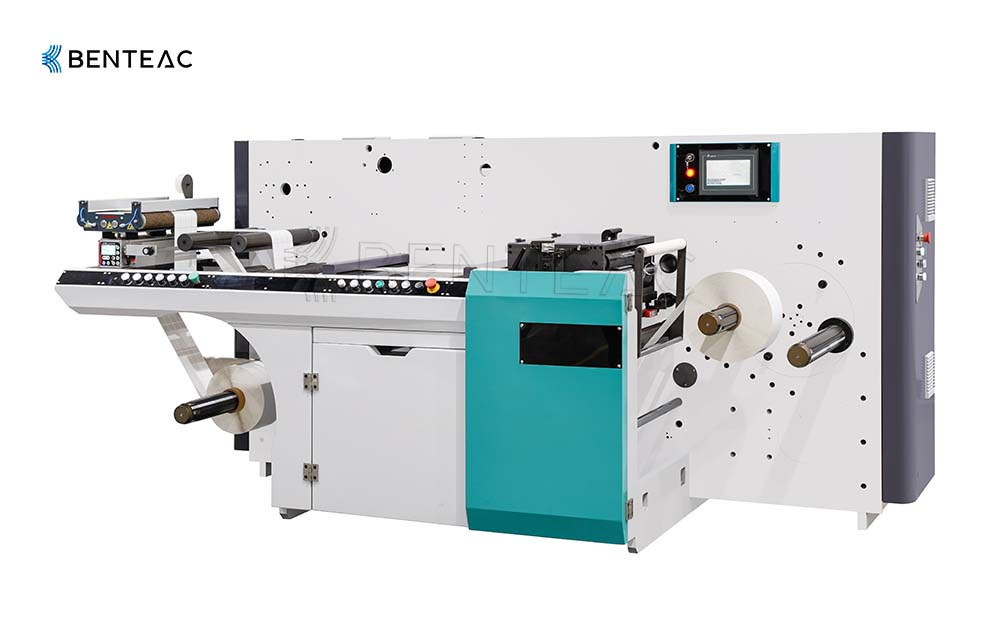

It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.

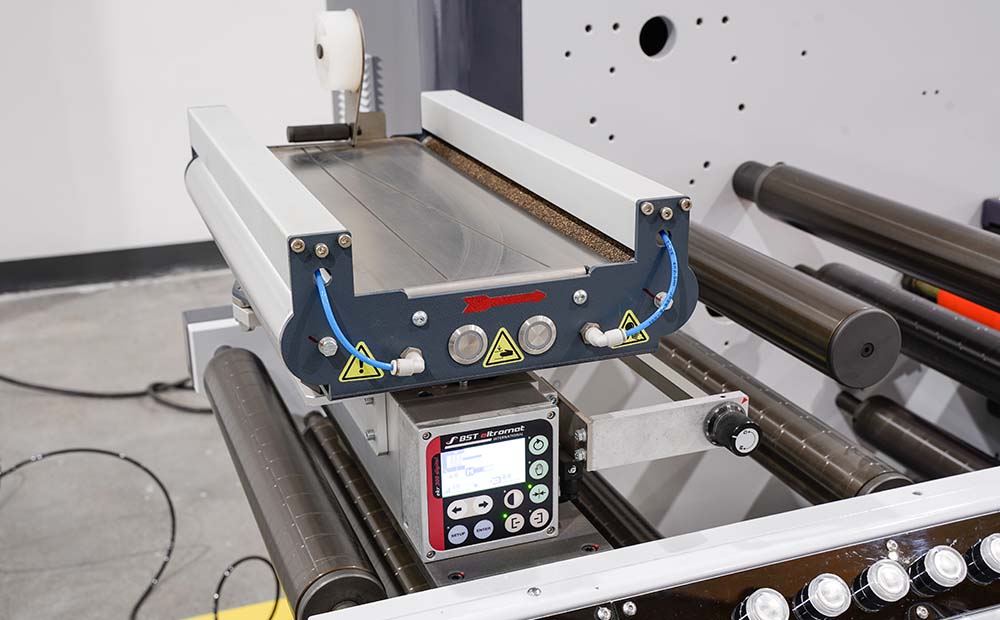

Machine description: The machine adopts integrated servo correction control system, equipped with PLC touch screen. The control panel adopts integrated control, and the operation is more convenient.
Feature: 1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste 3. Die cut station with servo register control. 4. Internet fault diagnostics . 5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )
