Smart design, adapt to almost all customer site needs
Refined process, can be operated without professional training
Stable and reliable machine installation
Automatic inflation shaft
Lifelong maintenance-free inflatable shaft
Stable tension control system, with segmented tension coupling calculation technology
100% paper splicing success rate
Adhesive tape on both sides
Can be connected to die cutting and other downstream processing
Three kinds of automatic unwinding die-cutting are optional: manual unwinding mode, roll diameter setting mode and paper finishing mode.
Full self-correcting function of winding belt

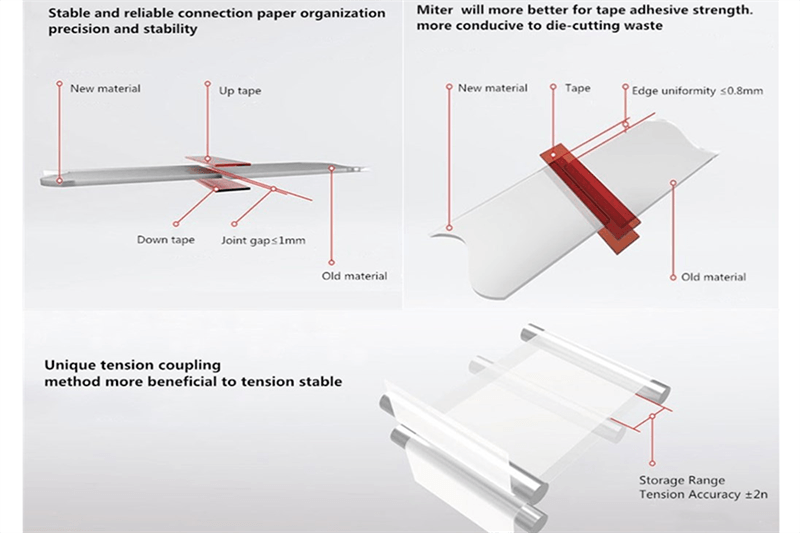

Laser positioning of splicing material edge alignment
Smart design, adapt to almost all customer site needs
Refined process, can be operated without professional training
Stable and reliable machine installation
Automatic inflation shaft
Lifelong maintenance-free inflatable shaft
Stable tension control system, with segmented tension coupling calculation technology
100% paper splicing success rate
Adhesive tape on both sides
Can be connected to die cutting and other downstream processing
Three kinds of automatic unwinding die-cutting are optional: manual unwinding mode, roll diameter setting mode and paper finishing mode.
Full self-correcting function of winding belt
Laser positioning of splicing material edge alignment
|

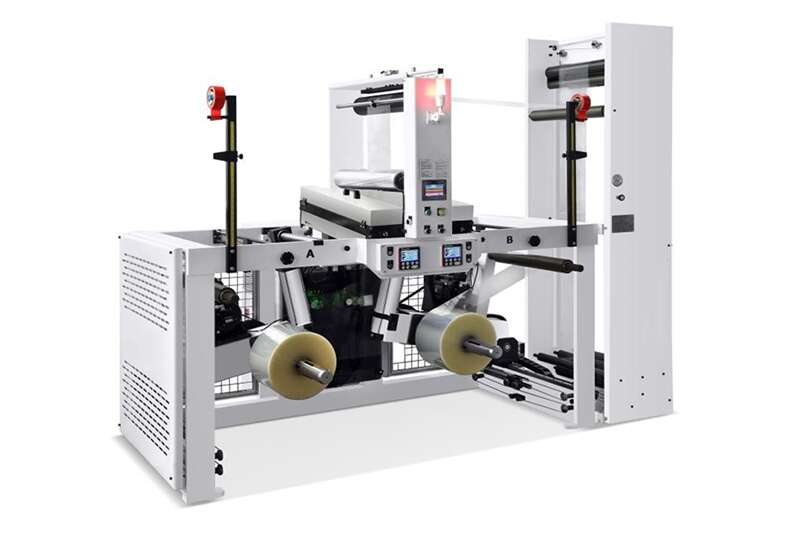

Model: |
HAUS/550 |
Explanation: Simple operation, no need to have any signal or cable connection with the host, even if the host emergency stop, jog, lift, speed reduction, etc., the unwinding machine can be stable without stopping. Note: Special materials need to be confirmed by Choyu Machinery Co., Ltd. to avoid burrs or continuous cutting when cutting materials, such as warp-weft synthetic paper, wrapping film and other thin films.
|
|
Name |
Non-stop unwinder |
|
|
Maximum Material max-width='100%' width |
550mm |
|
|
Maximum Machine speed |
100 M / min |
|
|
Maximum Unwinding diameter |
φ850mm |
|
|
Unwinding |
Zero speed docking (adhesive tape on both sides) |
|
|
Unwinding tension accuracy |
±2% |
|
|
Unwinding mode |
Roll diameter mode + manual mode |
|
|
Unrolling and receiving success rate |
100% |
|
|
Power |
8kw |
|
|
Machine footprint |
2700mm（Long）×2350mm（High） |
|
|
Machine weight |
1.8 Ton |
|
|
Applicable materials |
40-400g paper, double transparent stickers, PE sheet, etc. |
|
|
Feeding way |
Left to right from the operation surface |
Smart design, adapt to almost all customer site needs Refined process, can be operated without professional training Stable and reliable machine installation Automatic inflation shaft Lifelong maintenance-free inflatable shaft Stable tension control system, with segmented tension coupling calculation technology 100% paper splicing success rate Adhesive tape on both sides Can be connected to die cutting and other downstream processing Three kinds of automatic unwinding die-cutting are optional: manual unwinding mode, roll diameter setting mode and paper finishing mode. Full self-correcting function of winding belt Laser positioning of splicing material edge alignment
