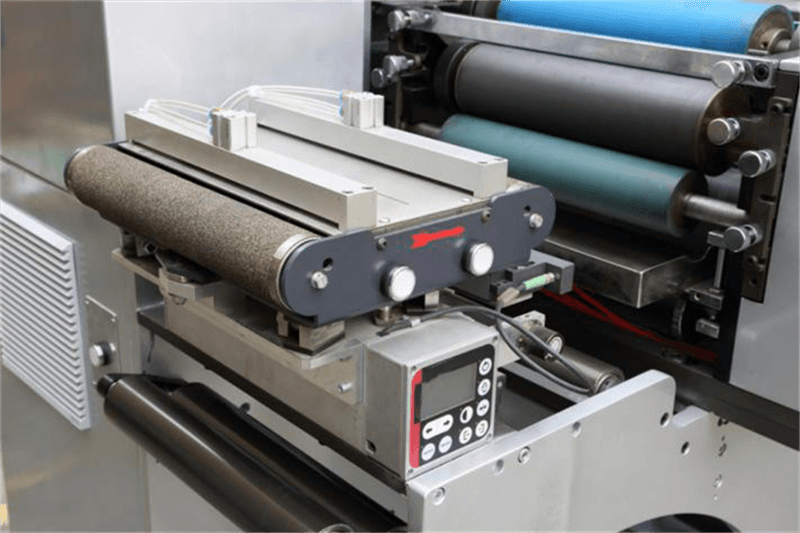

BST webgui :unwinder with closed - loop tension control , electronic web guide with ultrasonic edge guide sensor

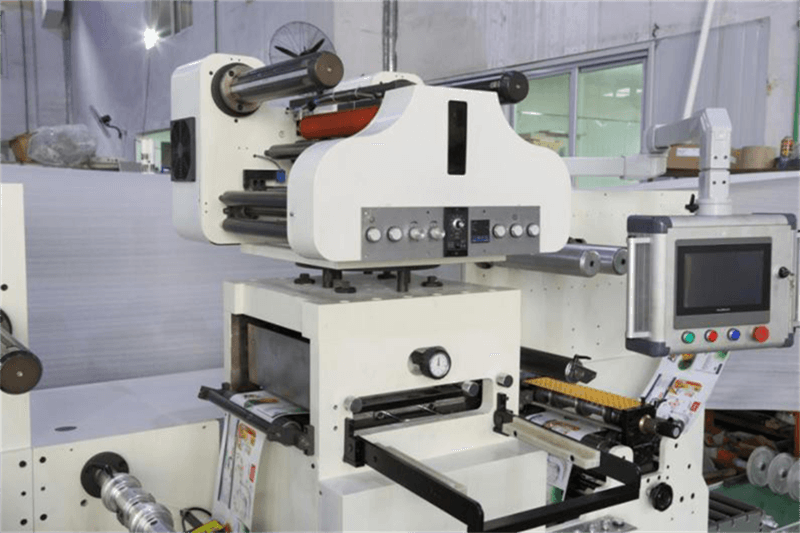

hot stamping unit:
Horizontal/vertical 90°rotating and adjustable stamping
The sliding axis controls the material, and multiple rolls of material can be stamping at the same timeSnowable waste
collection : very good solution for un normal shape label after die cutter , won’t brake when do waste collection process

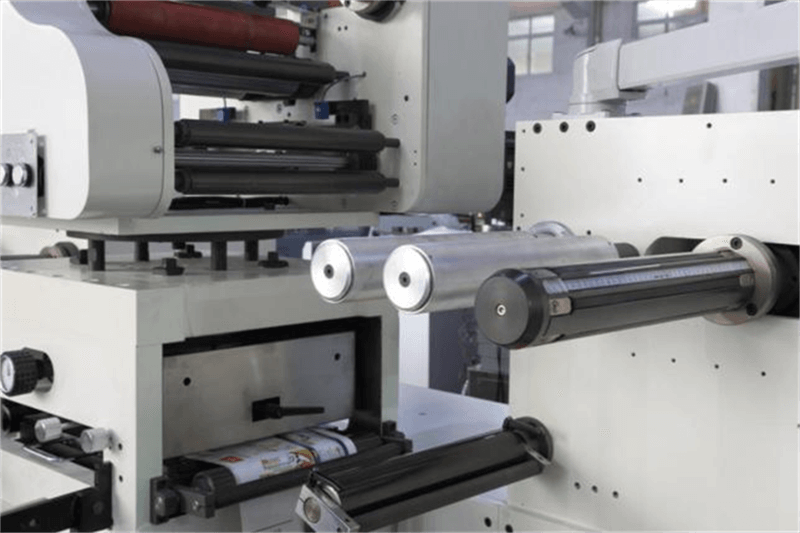

Slitting device with ten round knife euqipped . minmimum slit width 17mm . Double rewinder

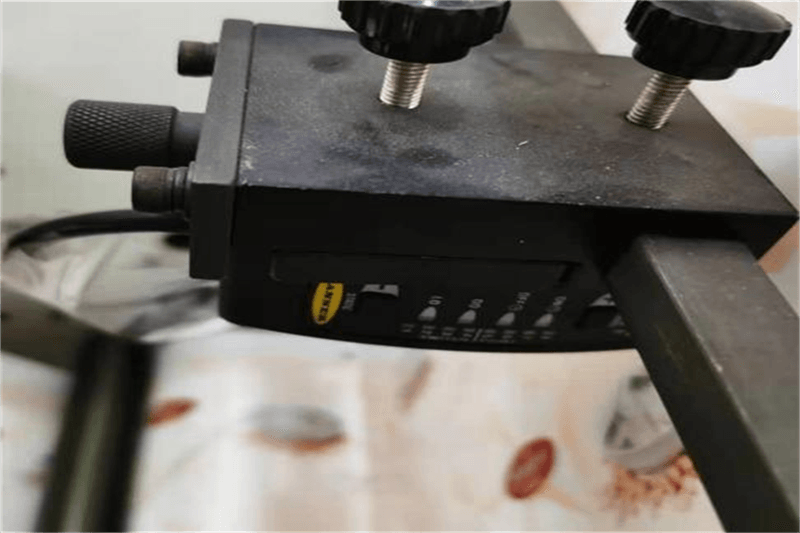

Italy brand colful tracking sensor to moniting register ten lins

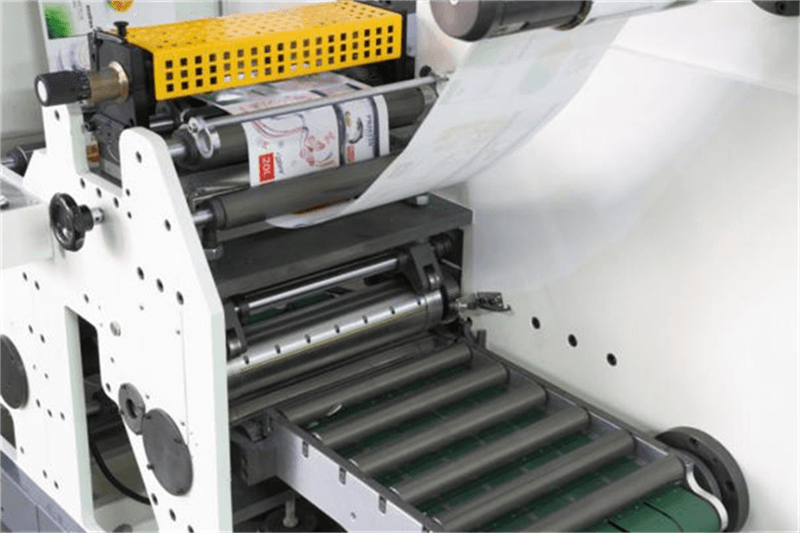

Servo driver controlled Sheet device , PLC control the sheet length

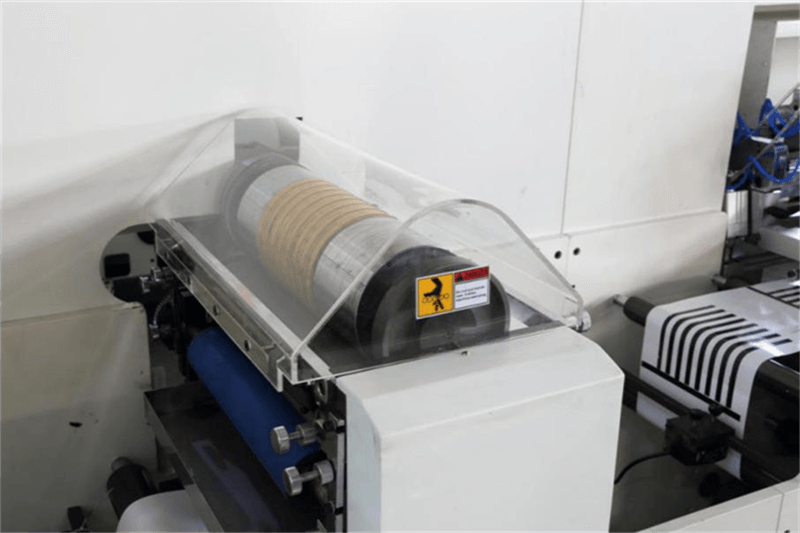

Semi rotary flexo unit : full servo driver controlled , can do semi rotary &rotary two method running , 152Z printing cylinder equipped ,
1.7mm /1,14 plate thickness use , o,38 mm adhesive tapes .Silk screen unit .

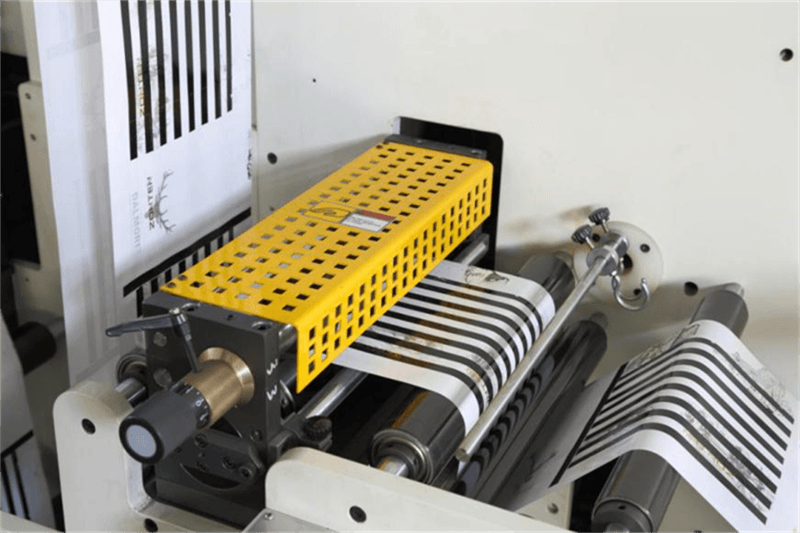

Semi rotary & rotary die cutter device , Magnetic cylinder in 152Z.
All imported Main electrcia parts including panasonic servo motor & driver , Trio UK PLC and etc .

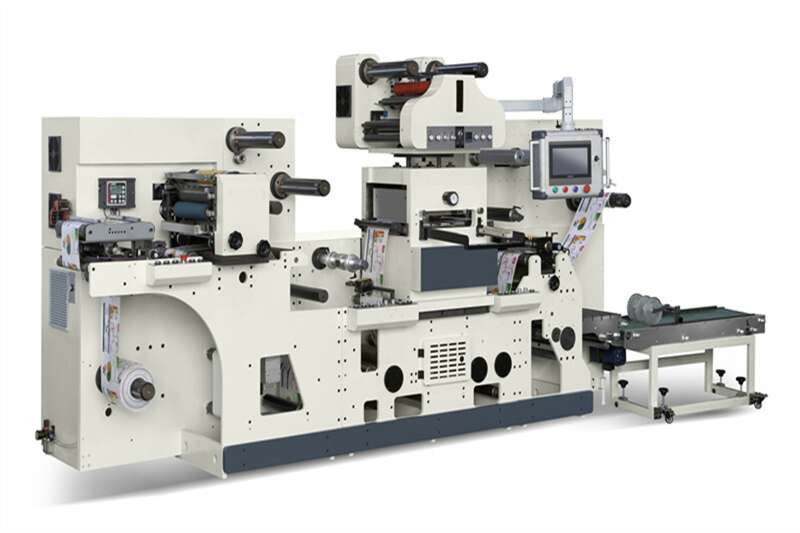

Label Flexo Printing and Flat Die Cutting Machine Line
|
Modelis |
Dragon -330 |
|
Max effective paper max-width='100%' width |
330MM |
|
Max unwinding dia |
700mm |
|
Max rewindinng dia |
700mm |
|
Registration |
Sensor |
|
Die cutting &hot stamp area |
320*350mm |
|
Die cutting speed |
400rpm/min 120M/minutes |
|
Air supply |
0.4-0.6pa |
|
Dimension |
5650*1510*1820MM |
|
weight |
8000 kgs |
In addition to the standard die-cutting function, this machine can also be equipped with screen printing, flat ironing, round ironing, polishing and cold ironing. The modular function setting
allows each function to be matched at will.
Illustrate in detail:
BST webgui :unwinder with closed - loop tension control , electronic web guide with ultrasonic edge guide sensor
hot stamping unit:
Horizontal/vertical 90°rotating and adjustable stamping
The sliding axis controls the material, and multiple rolls of material can be stamping at the same time
Snowable waste collection : very good solution for un normal shape label after die cutter , won’t brake when do waste collection process
Slitting device with ten round knife euqipped . minmimum slit max-width='100%' width 17mm . Double rewinder
Italy brand colful tracking sensor to moniting register ten lins
Servo driver controlled Sheet device , PLC control the sheet length
Semi rotary flexo unit : full servo driver controlled , can do semi rotary &rotary two method running , 152Z printing cylinder equipped , 1.7mm /1,14 plate thickness use , o,38 mm adhesive tapes .

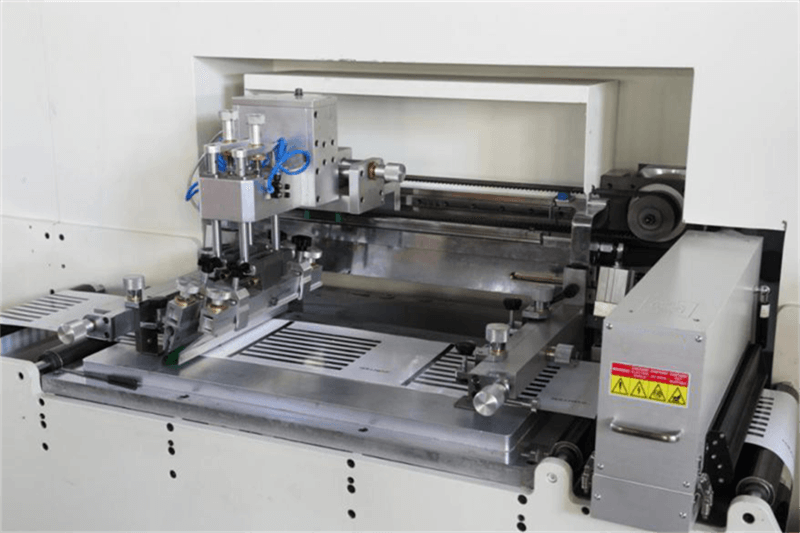

Silk screen unit .
Semi rotary & rotary die cutter device , Magnetic cylinder in 152Z.
All imported Main electrcia parts including panasonic servo motor & driver , Trio UK PLC and etc .
Unwind-Max unwind dia.700mm; Air expanding mandrel 3" Web guide-Maxcess Web guide ( Edge position control ) Flat bed die cutting-Eye mark sensor, height of the blade 9.5mm ( with upper blade and the bottom blade ) Rewind-Single rewind, Max unwind dia.700mm; Air expanding mandrel 3" Waste matrix-Max unwind dia.600mm; Air expanding mandrel 3"
1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste
（1） Unwinding adopts cold ring tension control, electronic BST paper guide with ultrasonic edge guide sensor （2） The die-cutting station adopts independent Panasonic servo drive control, which can run in two states of half rotation and rotation. （3） Slitting device with two rewinding shafts （4） Combination function, can add semi-rotary flexo printing unit, realize flexo uv varnish + semi-rotary die cutting + slitting at one time. （5） Independent electric box control, movable touch screen control. （6） The rotary die-cutting machine supports remote control. Any software problems can be solved directly with a laptop computer.
BST webgui :unwinder with closed - loop tension control , electronic web guide with ultrasonic edge guide sensor hot stamping unit: Horizontal/vertical 90°rotating and adjustable stamping The sliding axis controls the material, and multiple rolls of material can be stamping at the same timeSnowable waste collection : very good solution for un normal shape label after die cutter , won’t brake when do waste collection process Slitting device with ten round knife euqipped . minmimum slit width 17mm . Double rewinder Italy brand colful tracking sensor to moniting register ten lins Servo driver controlled Sheet device , PLC control the sheet length Semi rotary flexo unit : full servo driver controlled , can do semi rotary &rotary two method running , 152Z printing cylinder equipped , 1.7mm /1,14 plate thickness use , o,38 mm adhesive tapes .Silk screen unit . Semi rotary & rotary die cutter device , Magnetic cylinder in 152Z. All imported Main electrcia parts including panasonic servo motor & driver , Trio UK PLC and etc .
