1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
TechnicalParameter:
|
NO. |
Purchase Items included in the offer |
UNIT |
|
1 |
Unwind with servo driven |
1 |
|
2 |
BST webguide(Edge position control) |
1 |
|
3 |
Flat bed silk screen printing(Register sensor) |
1 |
|
4 |
11.2kw UV dryer (Taiwan UV light) |
1 |
|
5 |
Semi/full rotary die cutting(152T magnetic cylinder) |
1 |
|
6 |
Single rewind (with servo driven) |
1 |
|
7 |
Waste matrix(snow ball design) |
1 |
Characters:
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
TechnicalParameter:
|
Max Paper Width |
330mm |
|
Max Unwinding Dia. |
?700mm |
|
Max Rewinding Dia. |
?700mm |
|
Power Supply |
AV,380V,50HZ |
|
Air supply |
0.4~0.6MPa |

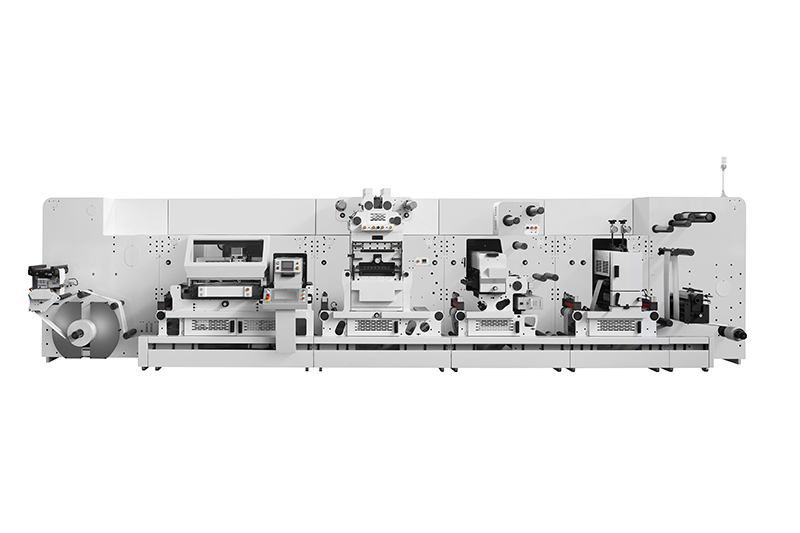

PLUS330 consists of following modules:
(Module 1)
UNWINDER WITH BST WEB GUIDE
?Max Web Width 330mm
?Max unwinder dia. standard 700mm(≈2000m)
?Unwind mandrel dia 76mm(3")air expanding
(Module 3)
FLAT BED SCREEN PRINTING DEVICE
?Max speed 80rpm
?Max printing area 300*260mm
?Accuracy ±0.15mm
?Single UV drying system 11.2kw
(Module 4)
SEMI-ROTARY DIE CUTTER DEVICE
?Max Die-cutting Speed (semi-rotary) 60m/min
?Max Die-cutting Speed (full-rotary) 90m/min
?Accuracy of Adhesive Cutting ±0.15mm
?Registration Mark Sensor
(Module 5)
SINGLE REWINDER
?Max rewinder dia. tandard 700mm(≈2000m)
?Rewind mandrel dia 76mm(3")air expanding
(Module 6)
WASTE MATRIX
?Maxrewind dia. 600mm
?Rewind mandrel dia 76mm(3")air expanding
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
（1） Unwinding adopts cold ring tension control, electronic BST paper guide with ultrasonic edge guide sensor （2） The die-cutting station adopts independent Panasonic servo drive control, which can run in two states of half rotation and rotation. （3） Slitting device with two rewinding shafts （4） Combination function, can add semi-rotary flexo printing unit, realize flexo uv varnish + semi-rotary die cutting + slitting at one time. （5） Independent electric box control, movable touch screen control. （6） The rotary die-cutting machine supports remote control. Any software problems can be solved directly with a laptop computer.
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor. 2. FullServo driven with exact web tension control,easy to operate,Minimizes waste. 3.Internet fault diagnostics. 4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc. 5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters. TechnicalParameter:
